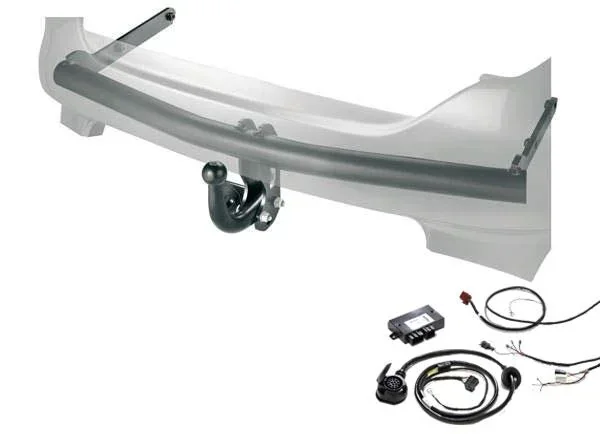

Tow bar kit for various vehicle models
| Artikelnummer | WF-830871 |
| Merk | Westfalia-Automotive |
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te makenEr zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0
With this tow bar and the matching electrical kit from WESTFALIA-Automotive for the following models:
- CITROËN Berlingo, year of manufacture 04/08-11/11
- CITROËN Berlingo Van (M_)
- Peugeot Partner Van (M_) 04/08-11/11
- Peugeot Partner Tepee
you receive a branded product of high precision and quality.
Each tow bar can be installed on your own vehicle using the enclosed installation instructions.
Thanks to the EC approval, which all tow bar types from WESTFALIA-Automotive have, there is no registration requirement, and therefore no additional costs for TÜV inspection are incurred.
Each tow bar is protected against weather and environmental influences by a special dipping process, cathodic dip painting.
The tow bar delivery includes all screws, cables, plugs, etc. necessary for installation, as well as the installation instructions.
Tow bar special features:
CITROËN Berlingo: short overhang, vehicle length = 4380 mm
also for Multispace, also for Berlingo E-Car. Peugeot Partner: short overhang + Tepee, vehicle length = 4380 mm
| Make | |
|---|---|
| Make | Citroën |
| Trailer coupling ECE No. | |
| Trailer coupling ECE No. | 0122 |
| D-value | |
| D-value | 8.69 KN |
| Turn signal monitoring | |
| Turn signal monitoring | CAN |
| Trailer coupling weight | |
| Trailer coupling weight | 17 kg |
| Charging cable | |
| Charging cable | optional |
| Make | |
| Make | Peugeot |
| Electrical kit type | |
| Electrical kit type | vehicle-specific |
| Vehicle model | |
| Vehicle model | Berlingo (B9), Berlingo (M_), Partner Box (M_), Partner Tepee |
| Tow bar system | |
| Tow bar system | KIT fixed, bolted ball bar (F20) |
| Nose load | |
| Nose load | 64 kg |
| Power connection | |
| Power connection | front |
| EPH deactivation | |
| EPH deactivation | yes |
| Coding/activation | |
| Coding/activation | required |
| Permanent plus | |
| Permanent plus | included |
| Cutout | |
| Cutout | no cutout |
| Installation time | |
| Installation time | 90 min |
| Trailer load | |
| Trailer load | 1,600 |
| Number of poles | |
| Number of poles | 13 |
