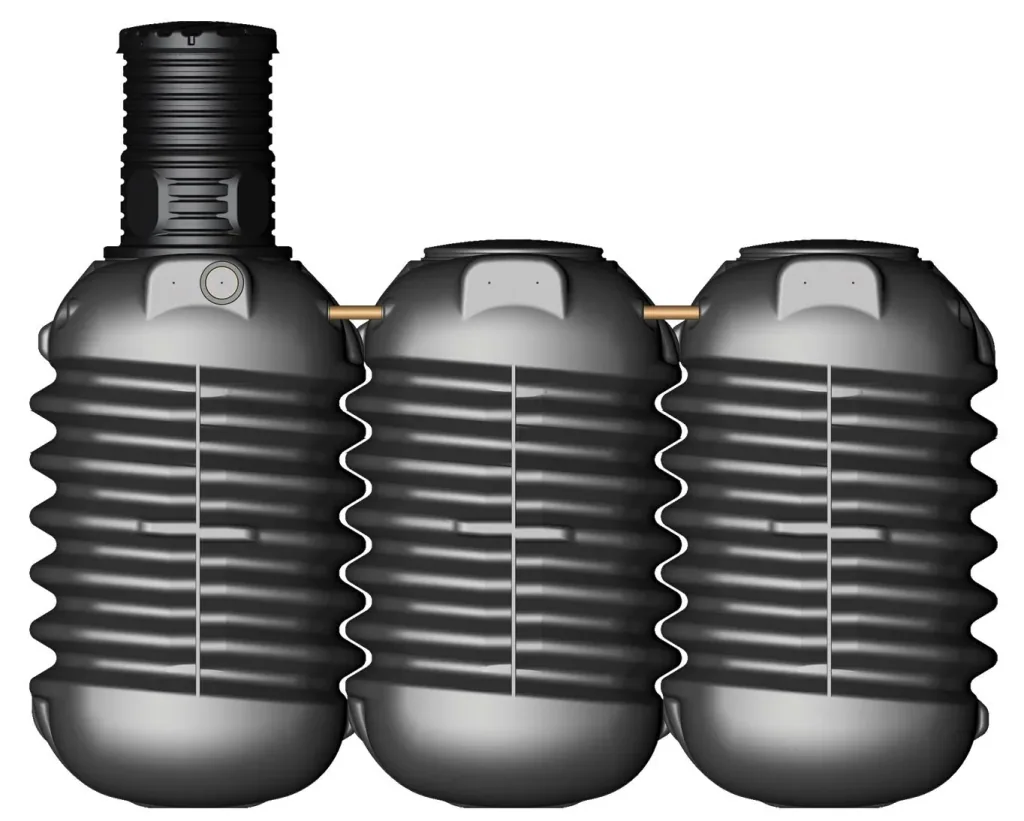

Underground tank "Modularis", 5000 l - water/rain storage

The underground rainwater storage tanks "Modularis" collect your rainwater. The narrow dimensions of the tank modules also allow access through narrow passages.

• A lot of tank for little money!
• Easy transport!

Dimensions and details:

• Dimensions per tank: 201 x 119 x 147 cm (H x W x D)
• 279 cm total height
• Walkable
• Black
• Made of plastic - 100% recyclable
• Tank cover child-proof
• Ready for connection thanks to pre-assembled lip seals
• Dom shaft rotatable 360° for variable, easy installation
• Tank system protected against seepage
• Weight per tank: 90 kg

The 4rain "Modularis" underground tank, with a footprint of only 1.8 m², is suitable for the 2,500 The tank is extremely space-saving. The plug-in connections of the individual components make installation easy. The underground tank is ready for connection thanks to the pre-assembled lip seals. Scope of delivery: Includes connection hole with integrated DN 100 lip seal for the overflow, includes dome extension that can be shortened to 40 cm, includes dome shaft with two holes for the inlet and the empty pipe, includes tank connection set consisting of four DN 50 seals and HT pipes, and includes core drill. Advantages: Easy transport thanks to modular design. Simple installation thanks to plug-in connections of the individual components. Very high stability thanks to interlocking ribbing. The tank dome system can be expanded as required for frost-proof installation.

Included in delivery:

• Tanks including DN 100 borehole and seals for the overflow
• Dom shaft with 2 DN 100 boreholes including seals for the inlet and the empty pipe. Can be shortened to 40 cm.
• Tank connection set consisting of 4 DN 50 seals and HT pipes
• Accessory set including core drill

Note: Cover not suitable for driving over.

Further technical information can be found in the product properties!

Please note the delivery instructions (see Documents & Downloads).
