Powerful deep well pump GTT 900, flow rate 3,300 l/h
| Artikelnummer | WF-816156 |
| Merk | Güde |
Er zijn nog geen recensies — wees de eerste
Deel je ervaring met deze aankoop en help andere klanten de juiste keuze te makenEr zijn nog geen vragen
Stel een vraag om meer te weten te komen over het product
0.0

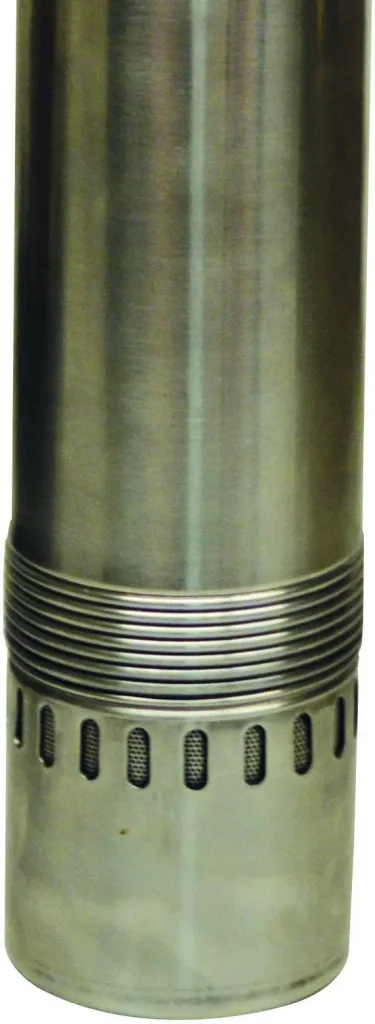

• Stainless steel casing

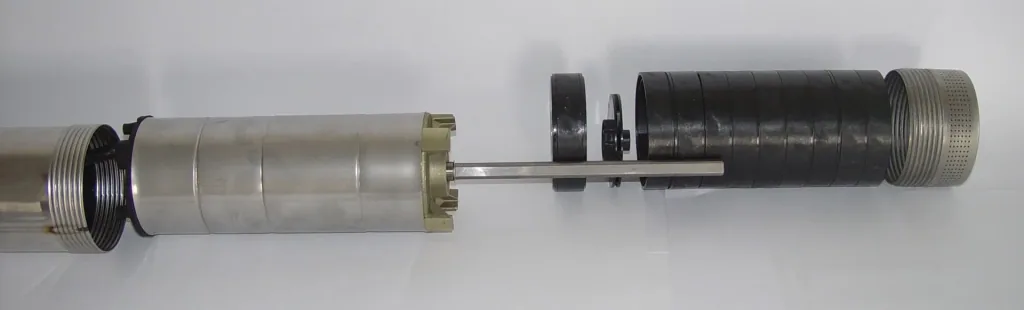

• 9 impellers made of glass fiber reinforced plastic
• Mechanical seal
• 20 m connection cable
• Thermal protection
• Stainless steel shaft

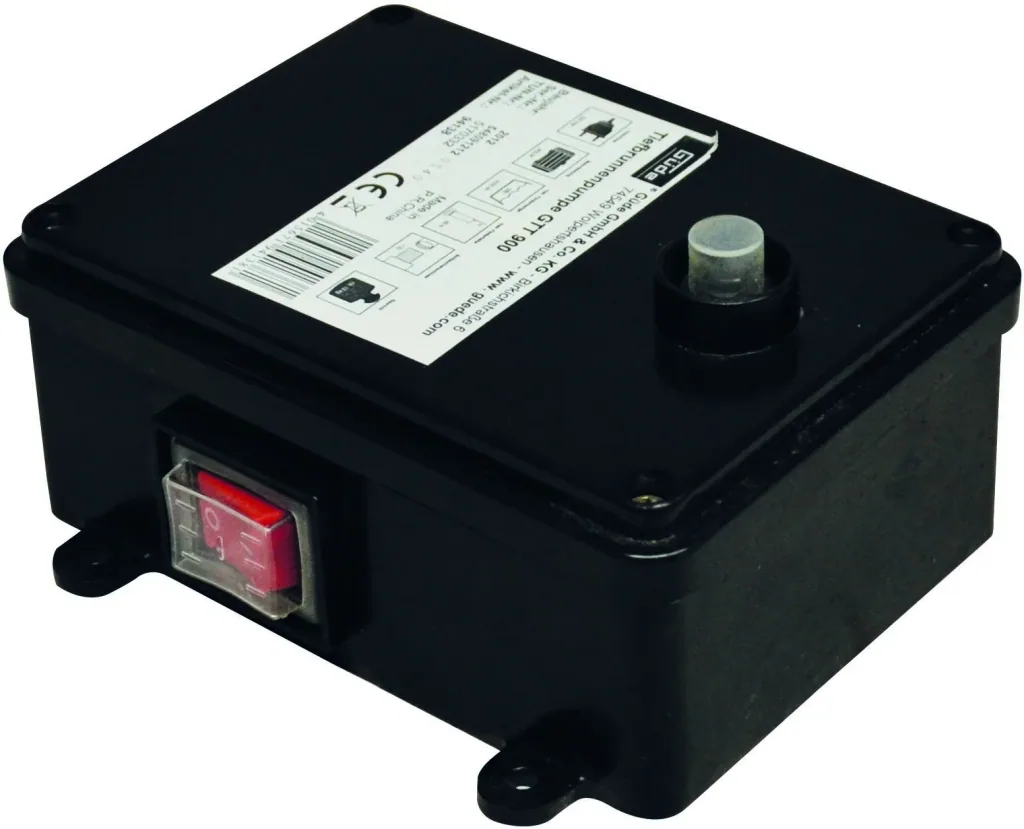

• Switch box with on/off switch and motor protection switch

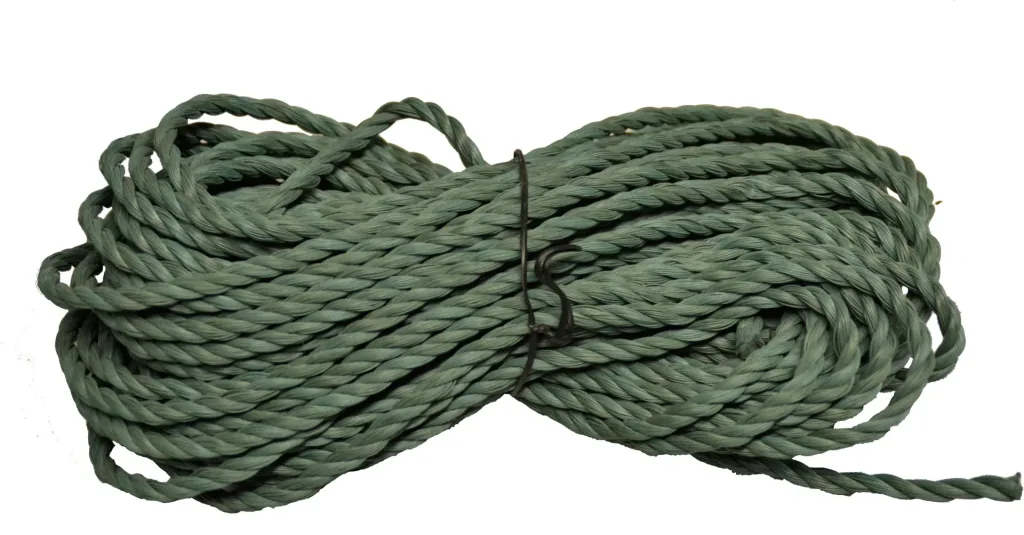

• 20 m nylon rope
Areas of application:
Only suitable for clear water.
For pumping from great depths and narrow wells.
Pump body diameter only 100 mm.
Mains voltage: 230 V
Frequency: 50 Hz
Motor power (P1): 900 W
Pump protection class: IPX8
Switch box protection class: IPX4
Number Impellers: 9
Ø-Pump: 100 mm
Discharge volume: 4500 l/h max.
Delivery head: 55 m max.
Immersion depth: 15 m
max. Grain size: 1 mm
max. Water temperature: 35 °C
Connection thread: 1" female
Length of connection cable: 2000 cm
Length: 100 mm
Width: 100 mm
Height: 630 mm
Net weight: 11.4 kg
Gross weight: 12.56 kg
