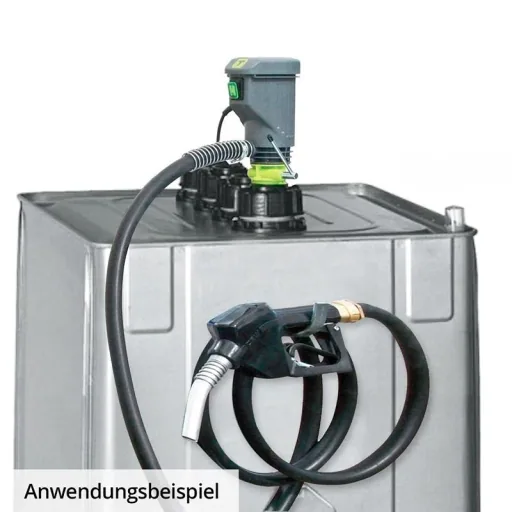

Electric pump W 40 with standard nozzle ZP 19

The electrically driven centrifugal pump is suitable for diesel, heating oil EL/L, and engine coolant (concentrate).

• Automatic nozzle A 2010 or standard nozzle ZP 19
• Suction stage with integrated siphon protection
• Foot filter
• Thermal fuse
• Hose swivel joint and anti-kink spring

The Hornet W 40 electric pump is available in two versions. The W 40 electric pump is equipped with a standard ZP 19 nozzle, while the W 40 A electric pump has an automatic A 2010 nozzle. The W 40 A version also features the electronic flow meter FMT 3.

The flow meter has a turbine wheel counter, a 2-line display and a 6-digit LC display with 16 mm character height. With the non-resettable total memory and 8 resettable partial quantity memories, the fuel consumption of individual vehicles can be monitored, for example.

Technical specifications of the electric pump:

• Delivery capacity W 40 / W 40 A: 38 / 30 liters per minute
• Suction hose: 1600 mm
• Maximum suction height: 2 m
• Connection cable length: 2 m
• Dispensing hose: 4 m
• Dispensing hose cross-section: DN 19 x 4 mm
• Drum thread: M 64 x 4 / G 2 mm
• Drive power: 250 watts
• Current consumption: 1.2 amperes
• Power supply: 230 volts/50 hertz
• Protection class: IP 44

Technical data for the FMT 3 flow meter:

• Flow rate: 5 – 120 liters per minute
• Maximum nominal pressure: 10 bar
• Nominal burst pressure: 20 bar
• Viscosity range: 0.8 – 40 millipascals per second
• Medium temperature range: -10 – +40 degrees Celsius
• Connection: 1" male thread
• Measurement accuracy after calibration: ± 1%
• Housing material: POM plastic housing
• Protection class: IP 65
• Battery: 2 x 1.5 Volt AAA

Dimensions:

• Electric pump (L x W x H): 263 x 132 x 205 mm
• Weight of electric pump: 5.9 kg
• Flow meter FMT 3 (L x W x H): 52 x 120 x 85 mm
