Steam engine kit D5 (TYPD6) Wilesco

The Wilesco D5 steam engine kit – technically identical to the D6 – is suitable for hobbyists and steam engine enthusiasts alike. It contains all the necessary parts and instructions to assemble the engine yourself. Assembly is simple and safe thanks to the detailed instructions and high-quality materials.

During the assembly process, you can learn how the engine works and gain a deeper understanding of its technology. Once the engine is assembled, you can put it into operation and experience the engine's performance for yourself. The highly polished and nickel-plated brass boiler not only gives the engine an attractive appearance, but also makes it weatherproof and robust.

The water level indicator in the form of a sight glass allows you to keep an eye on the water level at all times during operation. The boiler, with a capacity of 135 cm³ and a size of 100 x 45 mm, offers enough space for the water and steam required to operate the engine. The 70 mm diameter flywheel ensures smooth engine operation.

The screwed-on dome steam whistle can be operated during operation using a special lever. Its sweet sound is reminiscent of the famous engine Emma from the children's book "Jim Button and Luke the Engine Driver." When assembling the steam whistle lever, make sure that the black, heat-resistant plastic lever faces outward so that you can operate it during operation without touching the boiler.

Overall, the Wilesco D5 steam engine kit offers an exciting opportunity to explore steam engine technology and build a functioning engine yourself. You will certainly enjoy using the machine and experiencing its performance.

Technical Specifications

• Boiler capacity 135ml
• Flywheel diameter
• with steam whistle

Dimensions: (H x W x D) 220 x 200 x 140 mm

Weight: 760 g

Color: blue, red, nickel-colored

Material: metal

Lubricate all moving parts sufficiently with oil and follow the operating instructions.

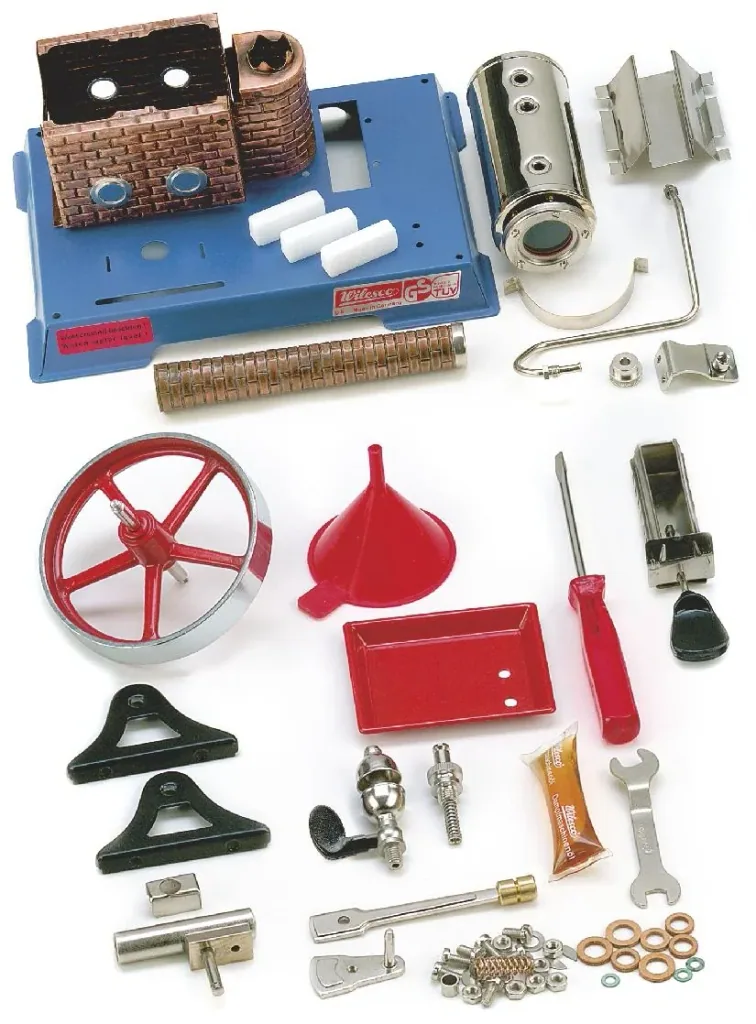

Scope of delivery

• Steam engine
• Funnel
• Steam whistle
• Chimney
• Initial filling with solid fuel
• Oil hose
• Assembly instructions in three languages D-EN-F
• Multilingual operating instructions
