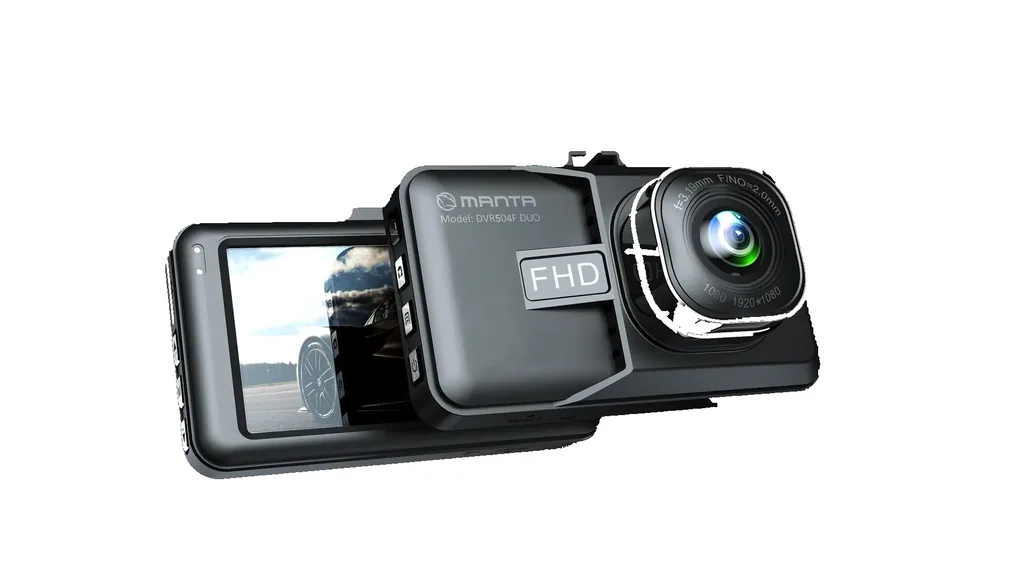

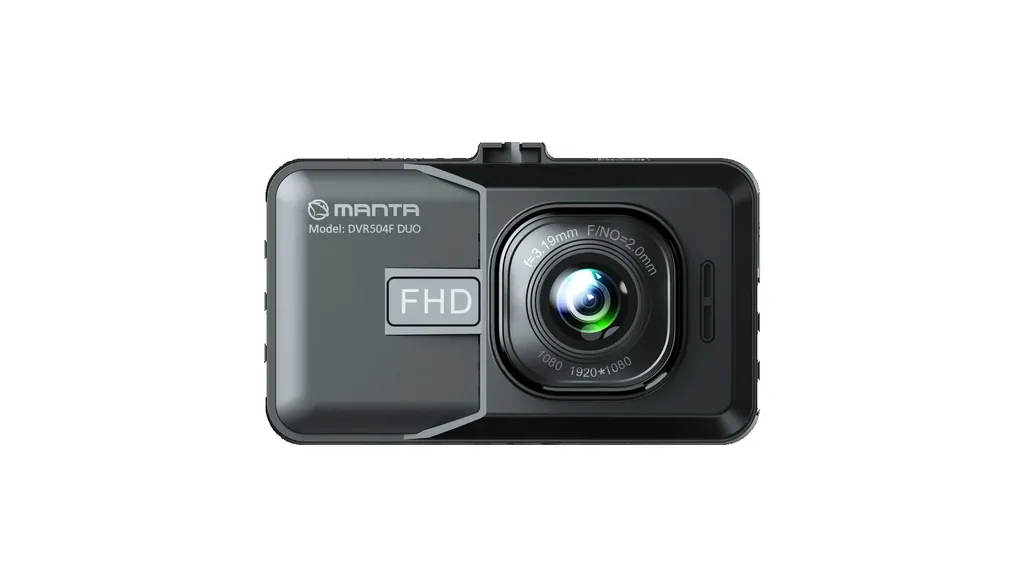

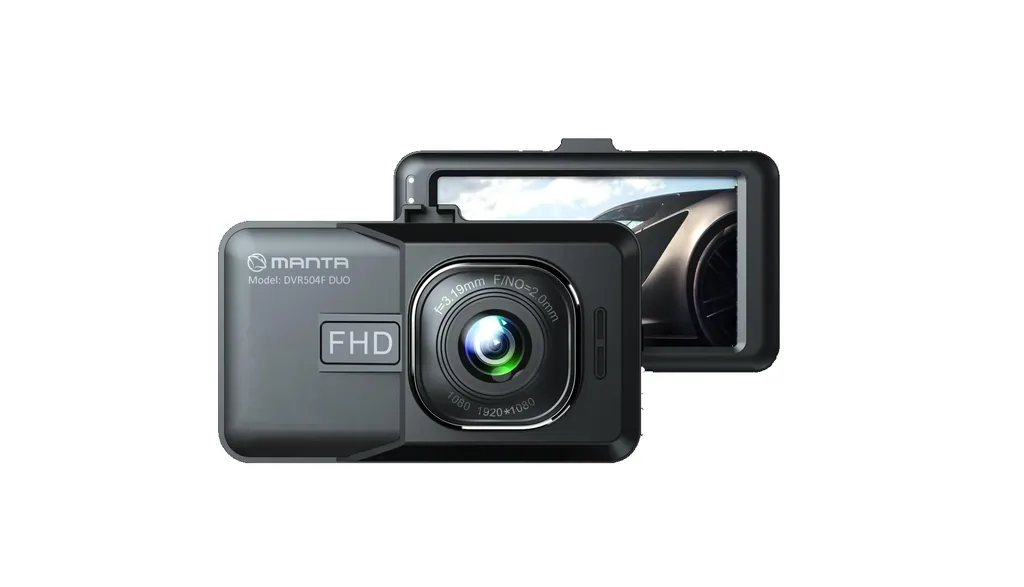

Manta FHD DUO Dashcam

• FHD resolution
• G-sensor (tangible evidence in the event of an impact)

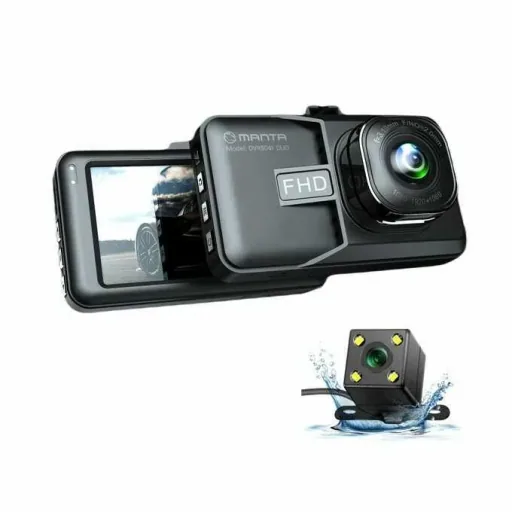

• Including rear view camera
• Built-in microphone
• Fully automatic
• Connections: Mini USB, Mini HDMI

Manta DVR504F FHD DUO Dashcam

The camera is equipped with a range of accessories, including an additional VGA rear view camera with recording function to enhance your recordings.

The camera can be mounted inside the car or on the vehicle.

During recording, two separate files are created on the card, one from the front camera and one from the rear camera.

• Color: Black
• Viewing angle: 140°
• Car power supply: 12V / 5V
• Screen diagonal: 3"
• Connectors: Mini USB, Mini HDMI
• File storage format: AVI
• Audio recording: Yes
• Image stabilization: No
• Auto power on/off function: Yes
• Display type: IPS
• Dashcam resolution: FHD (1920 x 1080) at 30 frames per second
• Rear camera resolution: VGA
• Aperture: F=3
• Battery: 200mAh
• Menu language: EN, PL, SI, DE, LT, LV, SK, ES, IT, PT, FR

Motion Detection

The camera automatically starts recording when it detects nearby motion.

G-Sensor: (Gravity Sensor)

Video recording will be locked in the event of a collision and will not be overwritten by loop recording.

Loop Function

Adjust the length of each video file to 1/2/3/5 minutes. If the "off" option is selected, the recordings will be 10 minutes long and will not be overwritten when the memory card is full.

Parking Mode

Parking Monitor: When the car is parked and the engine is off, the drive recorder will automatically start recording and begin recording if a vibration caused by an external force is detected; the video file will be locked.

Photo Resolution

Adjust the photo resolution: 12M/ 10M/ 8M/ 5M/ 3M/ 2M/ 1.3M

Screensaver

The display screen turns off automatically while the Drive Recorder is running to save power.

Option: Turn off / 3/ 5/ 10 minutes

Quick View

Allows you to view the photos taken.

Rear View Camera

The rear view camera is best mounted in the license plate frame or inside the vehicle near the rear window.
The camera is equipped with a 5.9-meter-long black cable for connection to the mirror. The second red cable is used to connect to the power supply (plus +) of the reversing light. The cable can be connected to the rear light cube or directly to the rear light.

When the vehicle is reversing, the image from the rear view camera is displayed on the recorder's display.

The rear view camera is connected via a mini HDMI socket connected.

When the rear view camera is connected, the image from two cameras is displayed on the camera display. The image is split in half.

The camera must be connected to the cigarette lighter charger.

Note:

When wiring, the car charger's extension cable can be hidden along the windshield.

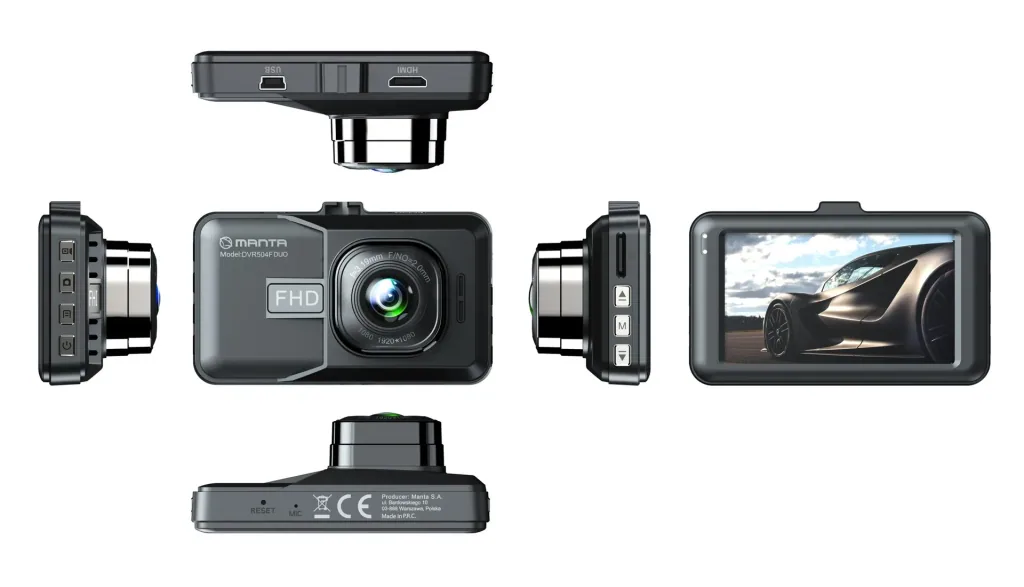

Dimensions

• Dashcam: Length: 8.5 cm x Height: 5.3 cm x Width: 3.3 cm
• Rear view camera: Length: 2.3 cm x Width: 2.3 cm
• Cable length: 5.9 m / positive cable 1.15 m
• Product weight: 90 g
• Product weight with packaging: 140 g

Scope of delivery

• 1 x Dashcam
• 1 x Rear view camera
• 1 x USB charger for cigarette lighter
• 1 x suction cup for mounting

Supports MicroSD card up to 64GB (not included)
