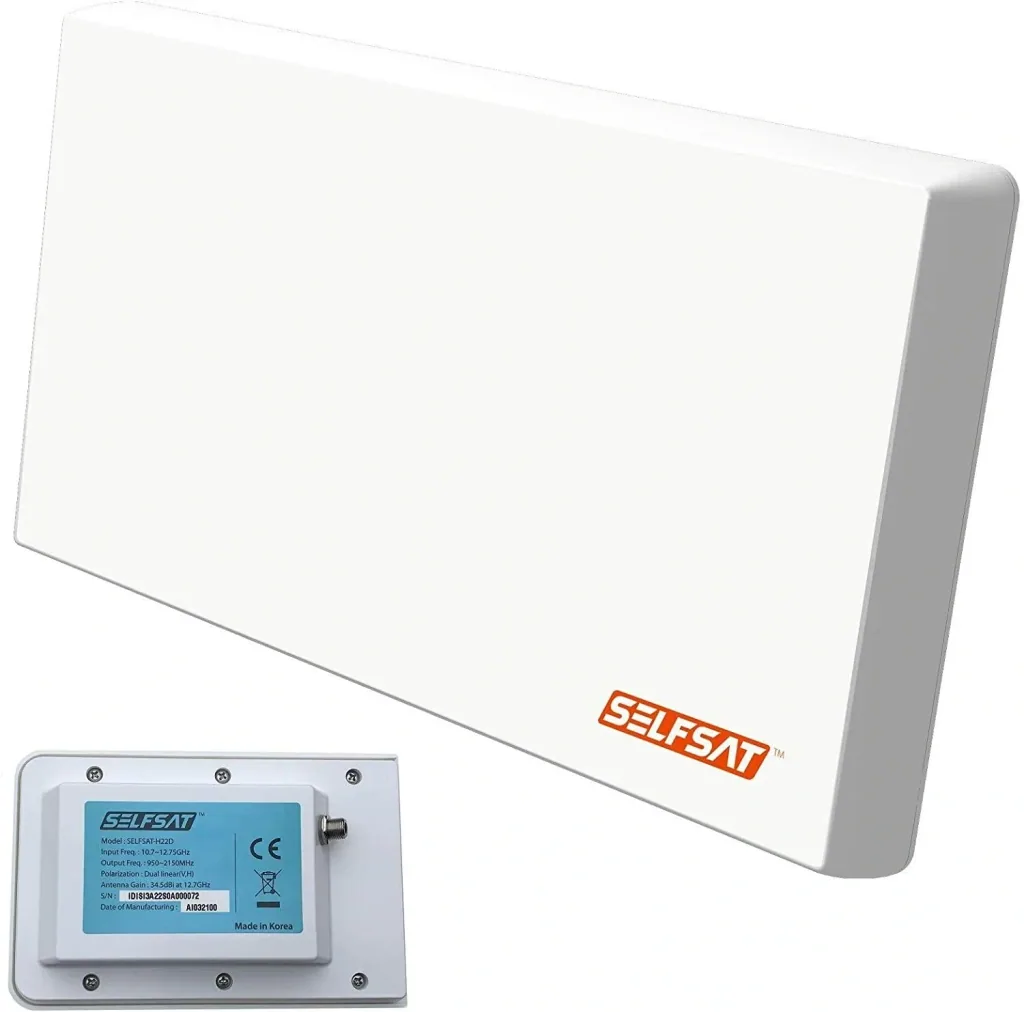

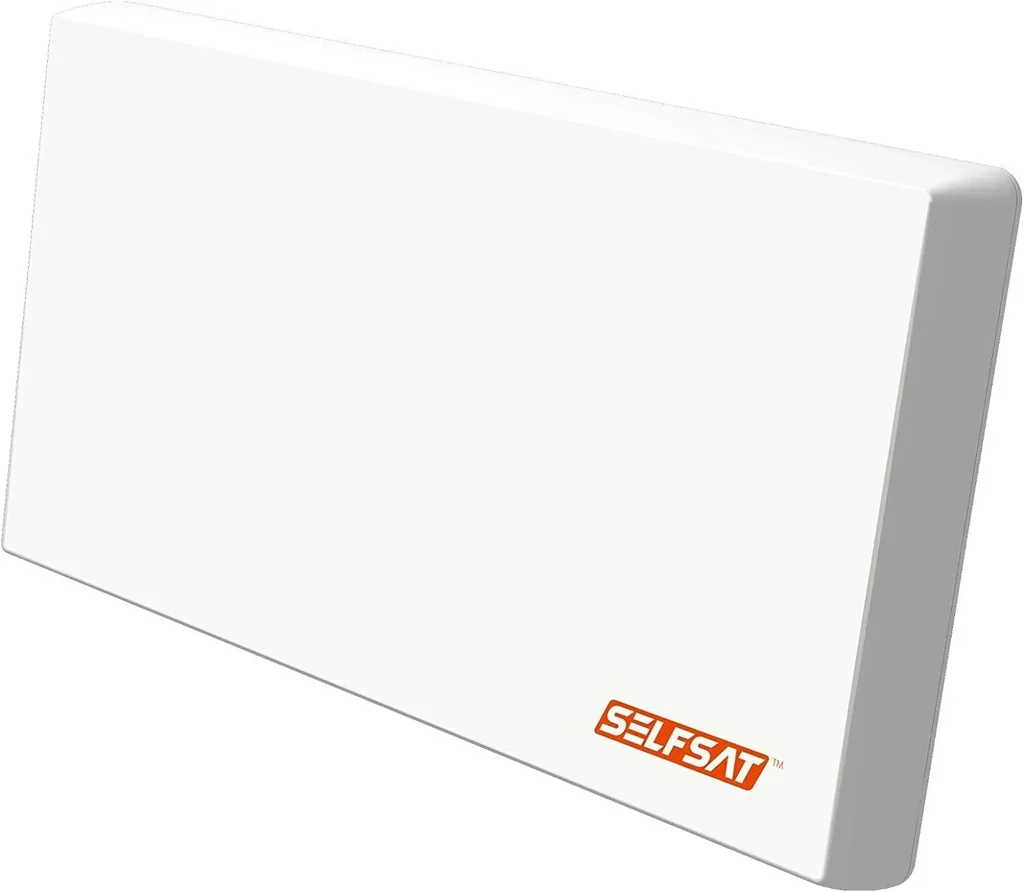

Sat flat antenna with single LNB

• Compact and slim: flat satellite antenna with integrated LNB
• Efficient = reception performance like a 60 cm parabolic dish
• Versatile = Adaptable and adaptable to the design of your home
• Simple = Simple and easy installation
• Ideal for mobile use
• Mobile and universally applicable
• Aesthetic design for homes in town and country
• Discreet installation
• Reception of all major satellites
• Ideal for HD/UHD reception
• New mounting system including window mount (exclusive to the + series) for even better alignment of the satellite antenna

The reception performance of this flat satellite antenna corresponds to that of a high-quality 60 cm satellite dish and is ideal for all satellites such as Astra 19.2° East, Eutelsat 13° East, Sirius, etc. suitable.

The new Selfsat H22D+ series has an additional window mount compared to the normal H22D series.

The new Selfsat H22D+ series offers even better reception performance than the H30D/H30D+. Furthermore, the H22D+ has a replaceable LNB. This means you can easily replace the LNB in ​​the event of a defect without having to buy a completely new satellite antenna. Furthermore, the H22D+ series can be adapted to current reception needs at any time, e.g. by easily replacing the Twin LNB with a Single, Quad or Quattro LNB.

Technical details:

• Frequency: 10.7 ~ 12.75 GHz
• Polarization: Vertical & Horizontal
• Reception power: 34.5 dBi @ 12.7 GHz
• LNB frequency: 950 - 1,950 / 1,100 - 2,150 MHz
• Operating temperature: -30°C ~ +60°C
• Weight: 4.9 kg
• Current consumption: 150mA (max)
• Operating temperature: -30°C to +60°C
• Storage temperature: -40°C to +80°C
• LNB output: LNB exchangeable (Single / Twin / quad)
• Switching Low / High: 0 KHz / 22 KHz
• LNB output frequencies: 950 - 2,150 MHz
• L.O. Frequencies: 9.75 GHz / 10.6 GHz
• LNB volume at 25°C: 0.2 dB typically
• Input VSWR: 2.5:1 typically
• Output VSWR: 2.5:1 typically
• Conversion Gain: 60 dB Typical
• Gain flatness: 6 dB p-p (max)
• Power supply: 12-14V DC (vertical) / 16-19V DV (horizontal)

Dimensions: (L x W x H): 566 x 300 x 78 mm

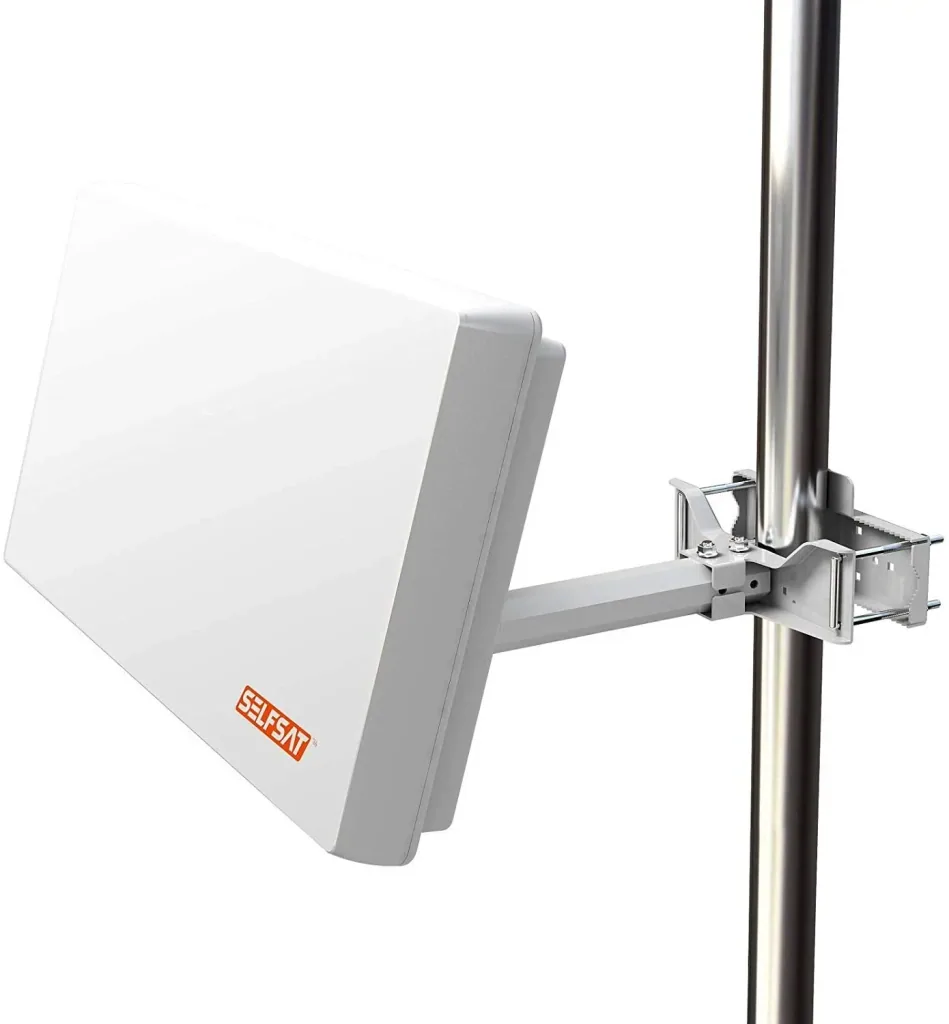

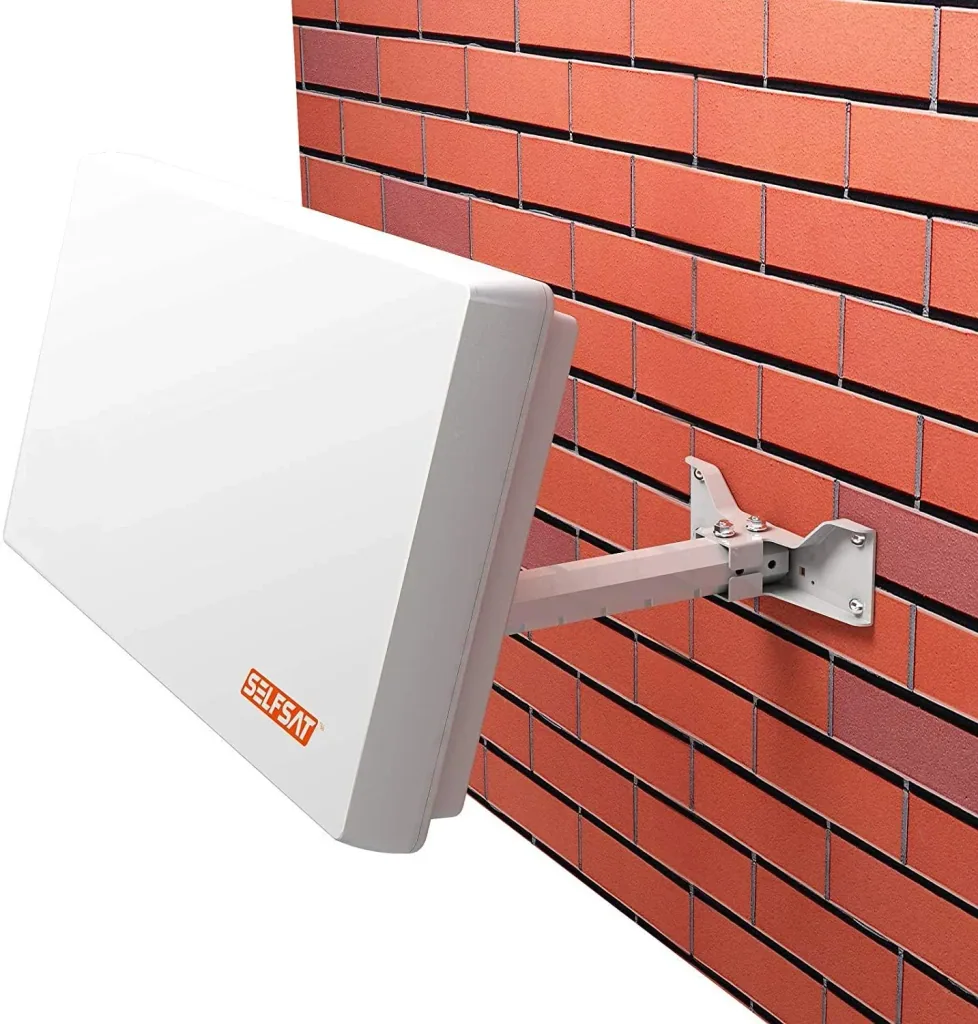

Included in delivery: Selfsat H22D+ flat antenna with single LNB, mast mount with fastening clamp, window mount, wall mount, stand, assembly instructions, Screw set, tool
