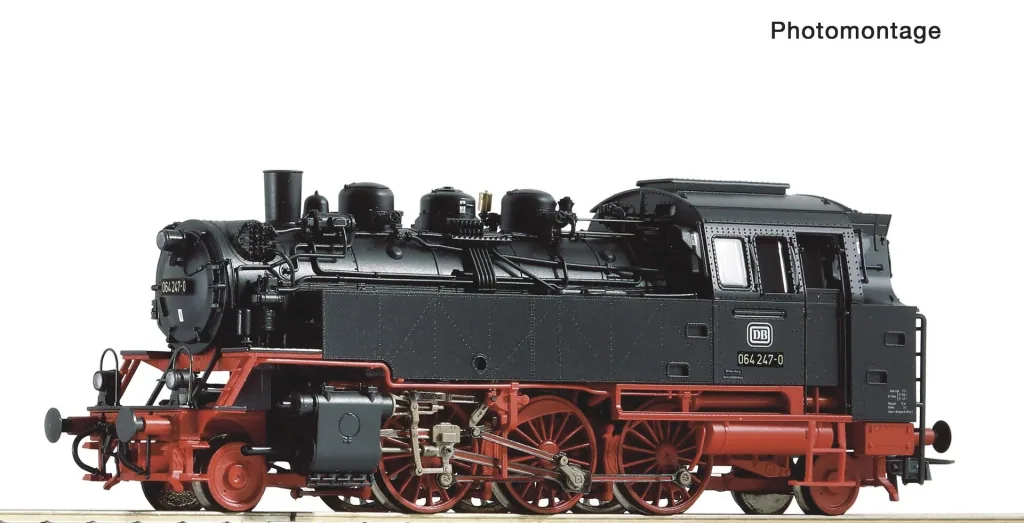

Steam locomotive 064 247 of the Deutsche Bundesbahn, H0, DCC

• Version with riveted water tanks
• Free-standing pipes on the boiler
• Fine metal wheelsets
• Leading and trailing wheelsets with disc wheels
• Smoke generator can be retrofitted

From 1928, a total of 520 Class 64 locomotives were put into service. The 90 km/h locomotives were built according to the design principle of the standard steam locomotives, which made the supply of spare parts easier. The locomotives were mainly used on branch lines and for hauling passenger trains and light freight trains.
At the time of the switch to computer numbers on January 1, 1968, the German Federal Railway still had 52 locomotives in its maintenance inventory. In contrast to the DR locomotives, which were primarily used in the northern lowlands, the Bundesbahn's Class 64 locomotives were used exclusively south of the Main line after 64 446 was transferred from the Hamburg-Rothenburgsort depot to the Plattling depot on April 30, 1966.

Technical Specifications:

General Specifications

• Coupling: NEM 362 shaft with close coupling mechanism
• Minimum radius: 358 mm
• Number of axles with traction tires: 1
• Smoke generator article number (digital): Seuthe No. 11
• Number of driven axles: 3
• Smoke generator can be retrofitted: Yes
• Flying mass: Yes

Electrics

• Interface: Electrical interface for traction vehicles according to NEM 652 with plug-in device
• Headlights: Triple headlights at both ends of the vehicle, alternating with the direction of travel
• Digital decoder: NEM 652
• Decoder type: MS480R
• Sound: Yes
• LED headlights: Yes

Dimensions

• Length over buffers: 143 mm

Railway administration: Deutsche Bundesbahn

Epoch:IV

Gauge:H0

Power system:2L DC
