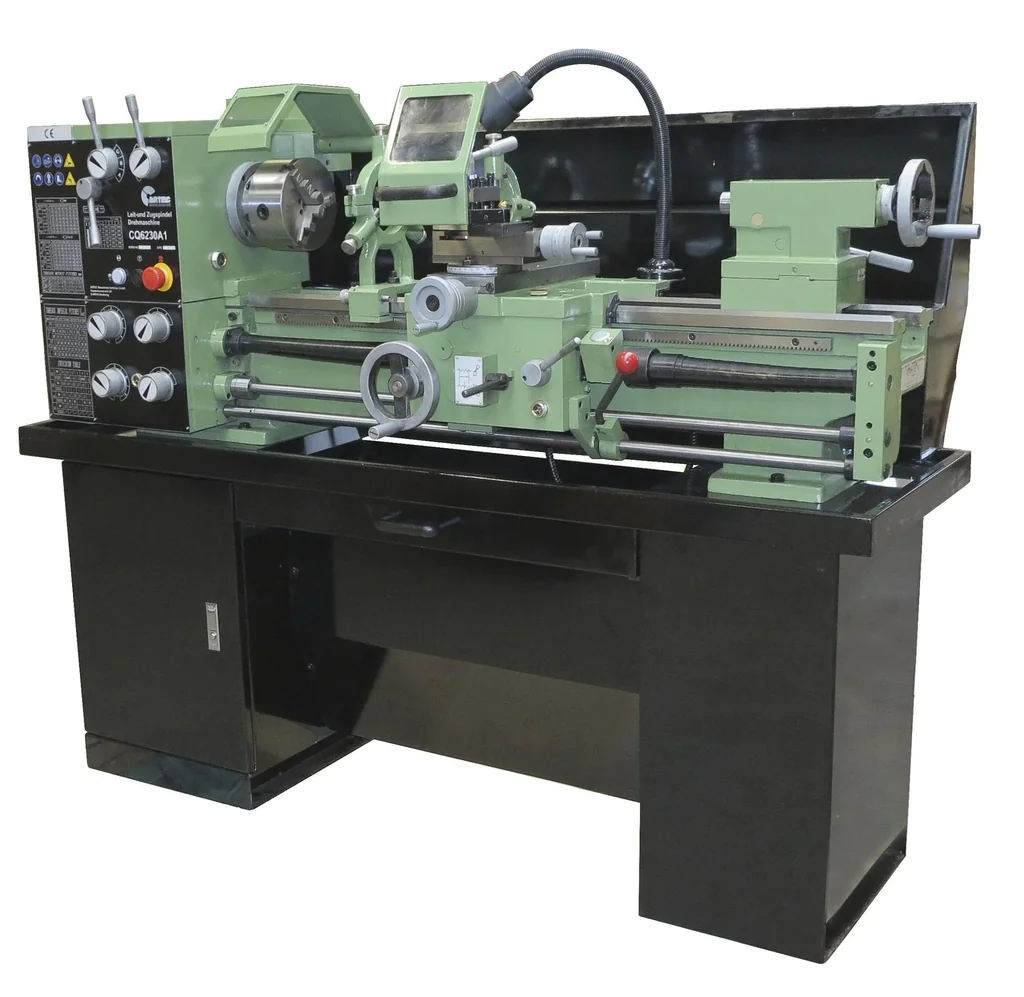

Lead and feed screw lathe C-6230A1, 400V 1500W with base

The "CQ6230A1" lathe represents a combination of price and performance, allowing the user to work economically even with irregular turning operations without sacrificing quality.

It features a heavily ribbed, hardened, and ground gray cast iron prism bed. The large main spindle, running in an oil bath, is guided by two adjustable precision tapered roller bearings. All guideways are adjustable via V-shaped guides. The gear drive also runs in an oil bath and is integrated into the main headstock. For taper turning, the top slide can be rotated 45 degrees, and the tailstock can be moved by +/- 5 mm. The machine is equipped with a slip clutch and a longitudinal stop.

Technical specifications:

• Center height 150 mm
• Center distance 910 mm
• Swing diameter over bed / offset 300 / 450 mm
• Spindle bore 38 mm
• Speeds 9-stage 80 - 2,000 min-1
• Thread cutting pitch metric / inch optional 0.4 - 7.0 mm 4 - 60 threads/”
• Feed longitudinal / transverse 0.079 - 1.291 / 0.017 - 0.276 mm/rev
• Tailstock mount MK3
• Feed travel tailstock quill spindle pitch 100 mm, 2 mm
• Feed travel Cross slide spindle pitch 150 mm, 2 mm
• Advance travel of upper slide spindle pitch 76 mm, 2 mm
• Motor 400 Volt/ 1500 Watt
• Dimensions L x W x H 1 580 x 500 x 1 270 mm
• Packaging L x W x H 1 680 x 750 x 750 mm
• Weight approx. 490 kg

Scope of delivery

2 fixed centers, change gear set, 3-jaw chuck 160 mm, 4-jaw face plate chuck 200 mm, 4-way tool holder, fixed and follower rest, face plate 250 mm, base with chip drawer that can be pulled out to the front, splash guard, machine light and operating instructions.

Technical and optical Subject to change. Machine is delivered disassembled.
