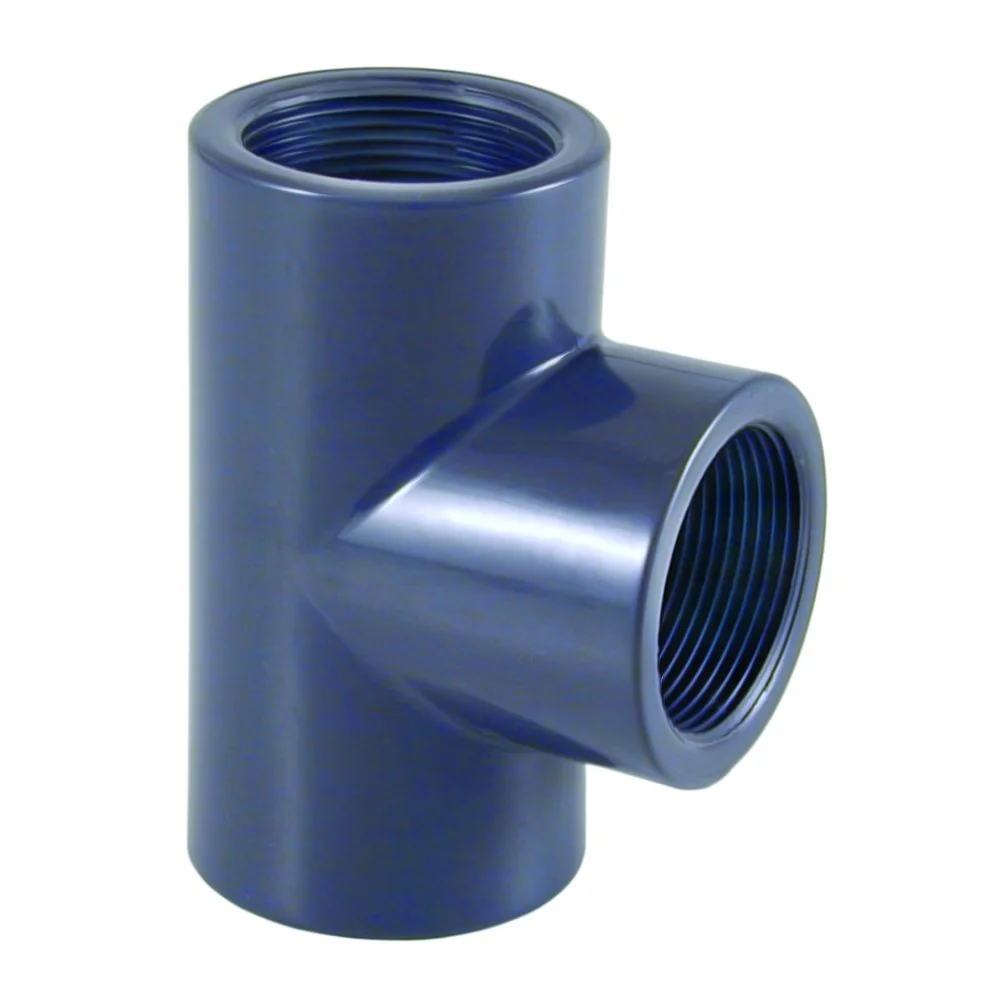

PVC-U T-stuk met binnendraad 1 1/4", PN10

PVC-U T-Piece IG 1 1/4" PN10

By gluing the fittings to the PVC pipe, shut-off valves, flow meters or sight glasses, a professional pipe system can be created with minimal effort.
The combination of fittings and pipe sections is used in pool, pond and swimming pool construction, industrial and plant engineering, agriculture, water conveyance, garden irrigation and irrigation systems.
Likewise, many koi systems and aquarium systems are built with this connection in private applications.


Technical Data (see image)


G: 1 1/4"
DN: 32
PN: 10 (150 psi)
L: 20mm
Z: 21mm
E: 54mm


PVC Fittings Advantages:


• low weight
• easy processing, as the parts can be glued together (solvent welding)
• abrasion-resistant and smooth material
• resistant to a wide variety of chemicals
• extremely durable
• no corrosion
• perfect sealing under severe conditions


Technical Data:


• T-Piece IG 1 1/4"
• Rigid PVC / PVC-U / Polyvinyl Chloride
• PN 10 / 10bar at 20°
• Manufactured according to ISO 9001 certification


Material and Processing:


The high-quality PVC fittings are made from PVC-U, this rigid PVC material is particularly durable and has good chemical resistance.
Since the fittings are coated with a grease film after production, it is important to clean the fittings with a cleaner before solvent welding and remove the grease film.
Cleaning the fittings is the basis for gluing them together, because if the fittings are not properly cleaned, the adhesive cannot fully adhere to the surface.
Initially, you should use more adhesive, as too little adhesive will only become apparent after completion through leakage.


Building with PVC Fittings:


The advantages lie in the installation of the PVC fittings, as the elements are glued together and this significantly reduces installation time.
The bonding provides a durable and robust connection that is very long-lasting.
The fittings are quickly assembled and easy to handle, for which the choice of the right adhesive is very important. Cepex adhesive and cleaner are ideal for this, as they are durable and easy to process.


PVC adhesive fittings – use and assembly.
With these fittings, piping systems and pipes with low water temperatures and low water pressures can be realized. Therefore, the fittings are ideal for filter systems in pond construction and aquaristics.


Further Applications for PVC Fittings:


• Swimming pools
• Whirlpools
• Pond construction
• Terrariums
• Aquariums
• Koi pond
• Tanks
• Plant engineering
