PP PE buisfitting 90° elleboog 25 x 3/4" buitendraad

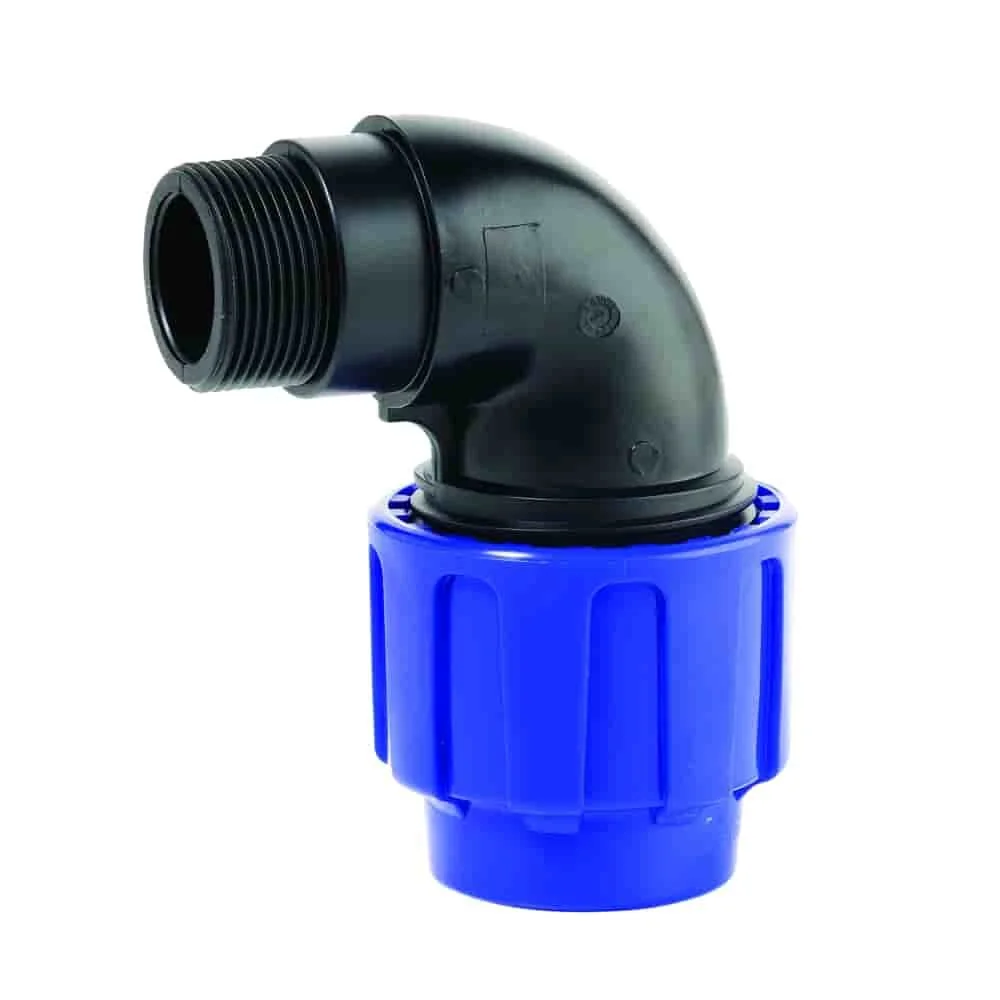

PP PE Pipe Fitting 90° Elbow 25 x 3/4" Male Thread


Looking for compression fittings and connectors for your pressure pipe systems?
We offer you the right PE pipe fitting for private or industrial use.

Suitable for use in the drinking water sector.

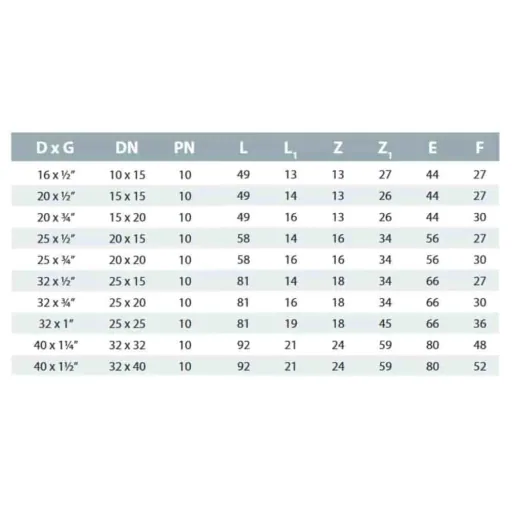

Technical Data (see image)


D x G: 25 x 3/4"
DN: 20 x 20
PN: 10 (150 psi)
L: 58mm
L1: 16mm
Z: 16mm
Z1: 34mm
E: 56mm
F: 30mm


Our All-Purpose Solution


Our PE pipe fitting is an all-purpose solution. It is made of polypropylene and is therefore very impact and crack resistant.
At the same time, it is very durable and shows little to no signs of wear or damage even after prolonged use.
It provides ideal insulation and is resistant to acids, alkalis, salts and other organic solutions.
Our PE pipe fitting (also called fitting) is particularly lightweight and can be installed in no time.
You benefit from the high quality of the product we offer, as our PE pipe fitting (compression connector) is tested and certified by internationally recognized testing institutes.
You can order the PE fittings from us in several variants and use them in a wide variety of applications. The most important points at a glance:


• PE pipe fitting in various variants
• blue/black
• suitable for use in the drinking water sector
• very easy installation
• secure connections, high sealing integrity
• highly durable, acid resistant and very impact resistant
• Temperature range from 0°C to 80°C (short-term up to 110°C)
• Maximum permissible pressure at 20°C = PN16 (240psi)


We offer various models


• Ball valve
• End cap
• Compression sleeve
• Coupling with male thread
• Coupling with female thread
• Coupling with socket
• Coupling with reducer
• Assembly wrench
• T-piece with 3 fittings
• T-piece with male thread
• T-piece with female thread
• T-piece with extension
• T-piece with reducer
• Wall bracket adjustable with female thread
• Elbow with 2 fittings
• Elbow with male thread
• Elbow with female thread

Our fitting complies with standards EN 712/713/715 and ISO 3501/3458/3459.
It is optimally suitable for connection to PE pipes in accordance with standards ISO 11922; DIN 8072/8074 and UNE 53131.

Affordable and reliable: our PE pipe fitting!
